Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: FLORESCENCE
  • Model Number: FL-JZY001
  • Part: pneumatic rubber fender
  • Diameter: 500mm~3300mm
  • Length: 1000mm~6500mm
  • Reaction Force: 64KN~3015KN
  • Guaranteed Energy Absorbtion: 6KJ~1814KJ
  • Initial Internal Pressure: 50kPa or 80kPa
  • Weight: 25KG~2700KG
  • Rubber: 54% natural RSS3
  • Accesseries: valve and towing ring sets
  • Chain tyre net: Optional
  • certificate: CCS, BV, LR, ABS

Packaging & Delivery

Packaging Details: Standard package or as customer required, can be shipped inflated or deflated.
Product Overviews
Pneumatic Rubber Fender



Introduction for Pneumatic Rubber Fender:



Floating pneumatic rubber fenders have been in use for around 50 years. It is the leading device for

marine application in the world. This compressed air filled rubber fender is used as a protective medium

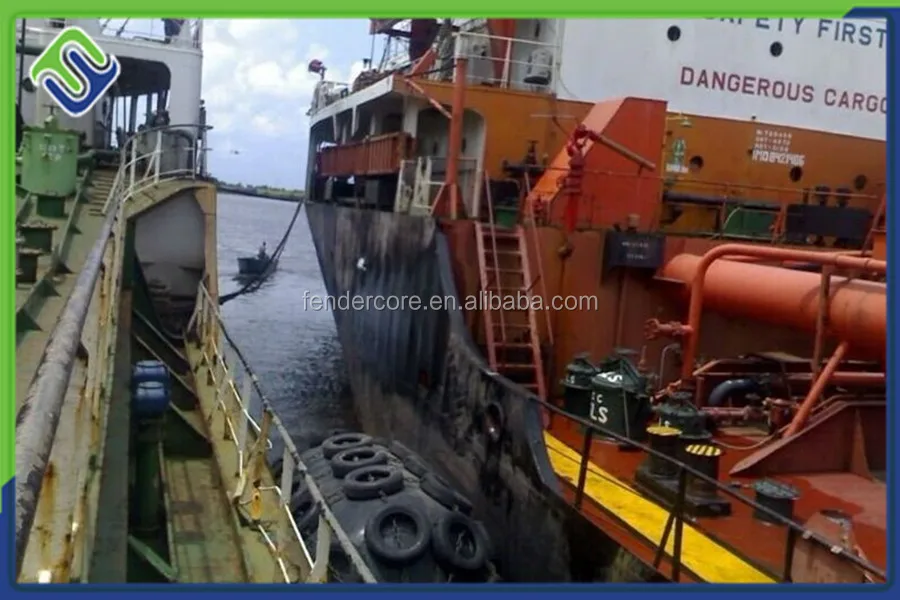

for ship-to-ship operation(STS), ship-to-quay(STQ) and ship-to-berthing(STB).




Florescence Pneumatic Rubber Fender Construction:

Outer rubber: rubber layer that covers the outside of the fender to protect the cord layers and the
inner liner rubber from abrasion and other external forces.

Inner rubber: liner of a rubber membrane that seals the pressurized air inside the fender.

Synthetic-tyre-cord layer for reinforcement: layer made of synthetic-tyre-cord fabric, which maintains
the internal air pressure of the fender.

Bead ring: steel ring which is placed at one end (or both ends) of the fender and holds the end of cord
layers.

Flange opening: steel flange, which is mounted on the fender, to which an air valve or safety valve can
be adapted.



Florescence Pneumatic Rubber Fender Advantages:

1. High energy absorption and with a low reaction force
2. Light weight, portable and floatable, can be installed and replaced easily
3. Heavy duty and long service life-over 10 years
4. Supplied as sling type (body only) or with chain and tire net for protection of the fender body
5. Sizes from 0.5m diameter × 1.0m length up to 4.5m diameter × 12m length
6. Suitable for locations with large and small tidal differences


Specification





Florescence Pneumatic Rubber Fender for Medium and Small Vessels:





Vessel Tonnage

Size (D*L) mm

Recommend Vessel

50

500*1000

Fishing Vessel

100

700*1500~1000*1500

Fishing Vessel

200

1000*1500~1200*2000

Fishing Vessel, Tugboat

300-500

1200*2000~1500*2500

Fishing Vessel, Tugboat

1000

1500*2500~1500*3000

Tugboat, Transport Ship

3000

2000*3000~2000*3500

Ocean Trawler, Transport Ship

10000

2000*3500~2500*4000

Transport Ship





Classification of Pneumatic Rubber Fender:

Fender types:

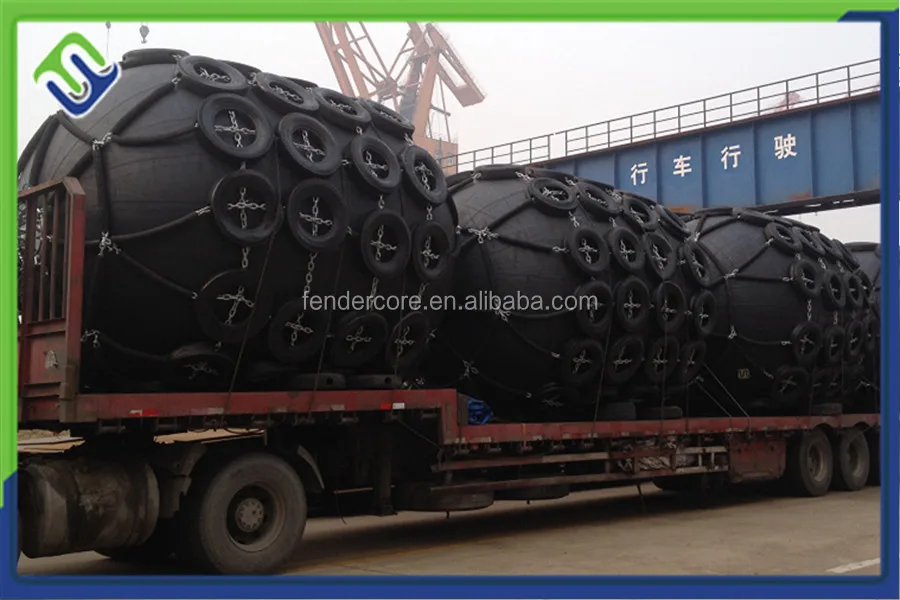

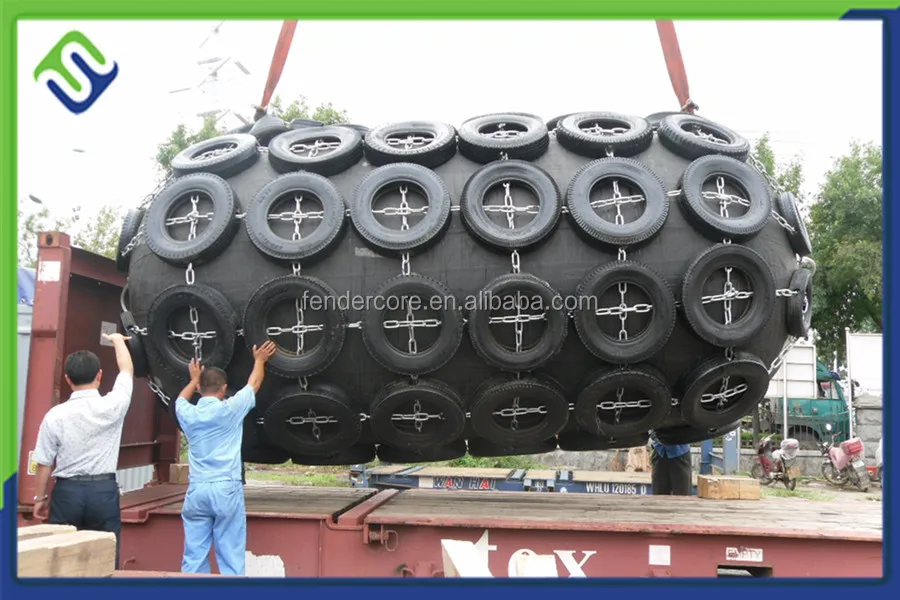

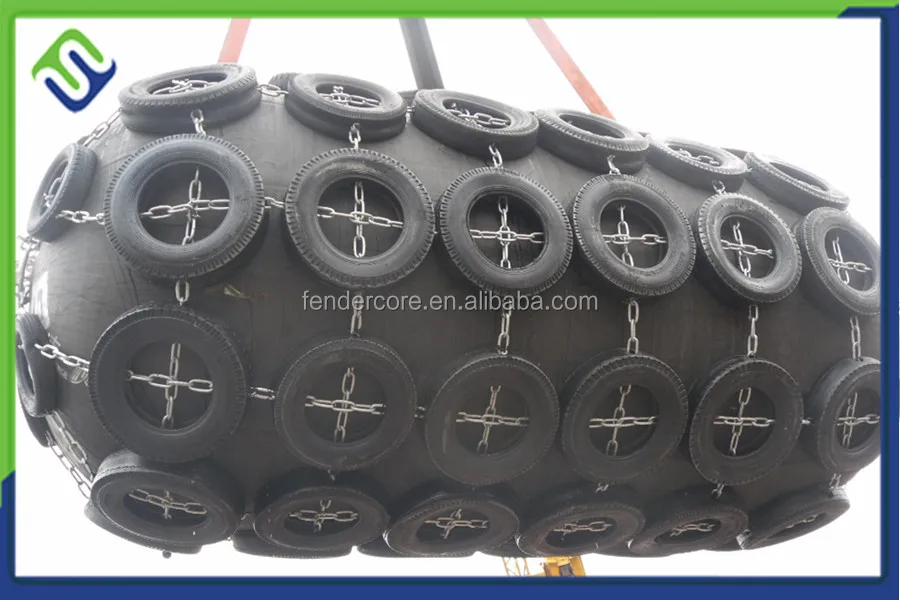

1.Net-type fender: fenders which are covered by a tire chain net, each end shall be linked together
with one to two ring(s).

2.Sling-type fender: fenders which are designed to be used without a protection net.
Initial internal pressure:
--Pneumatic fender 50 (initial internal pressure 50 KPa)
--Pneumatic fender 80 (initial internal pressure 80 KPa)

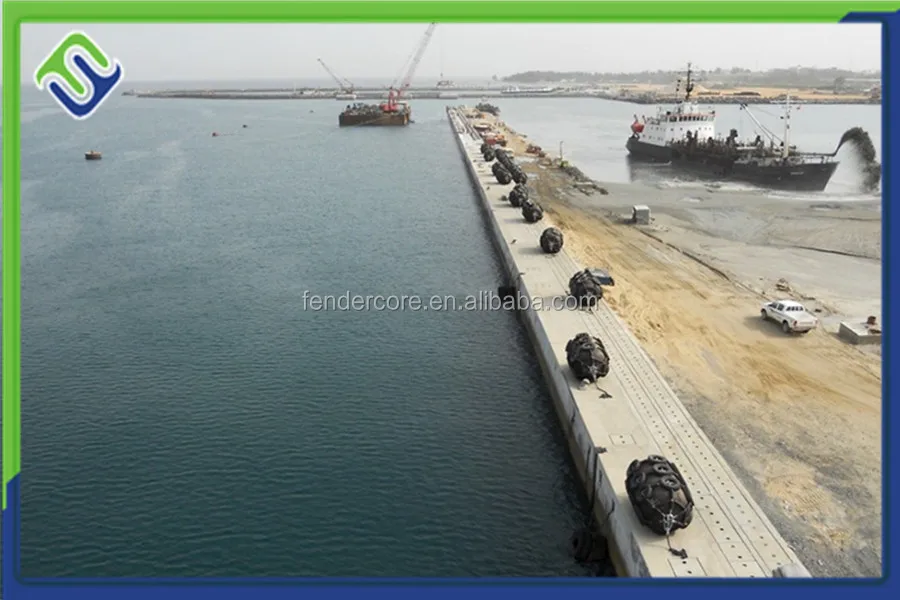

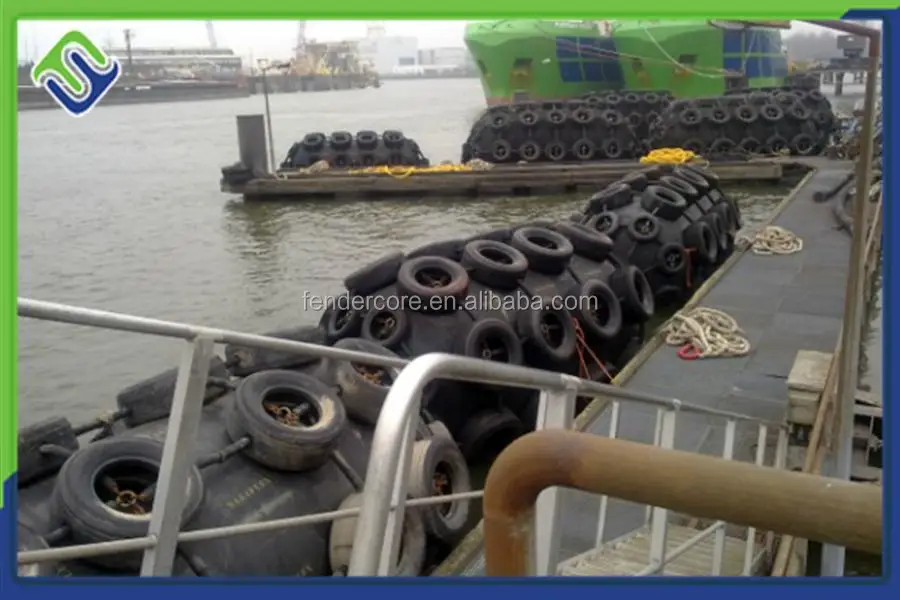

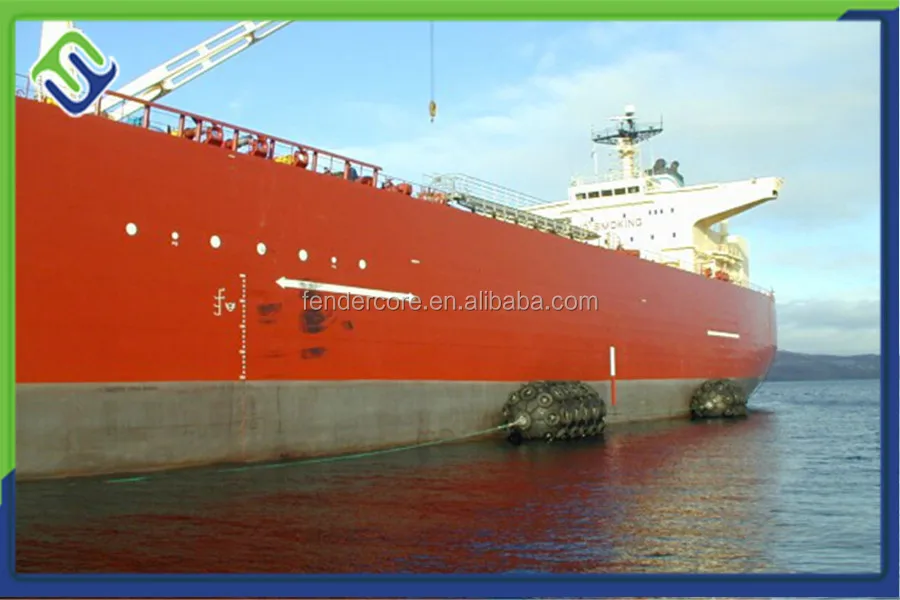

Applications

Florescence Pneumatic rubber fenders are suitable for many applications including:

1. Tankers, Gas Carriers and Bulk Cargo Ships;
2. Fast ferries and aluminum hulled vessels;
3. Temporary of permanent installations;
4. Rapid response and emergency fendering;
5. As stand-off fenders to realign ships with shore facilities.


Test

Tests and Inspections:

Acceptance testing and inspection for purchased fenders shall be based on the tests and inspections
indicated in this clause.

1.Material test for rubber
The material test of the outer rubber and the inner rubber shall be conducted in accordance with the
physical properties of inner and outer rubber required by ISO 17357:2002

2.Dimensional inspection
The dimension of all the fenders shall be inspected at the initial internal pressure and the results shall be
within the following tolerances:
- length: +10%, -5%;
-diameter: +10%,-5%

3.Air-leakage test
The air-leakage test shall be conducted on all the fenders at initial pressure for more than 30 min, and
the test results shall confirm that there is no air leakage.

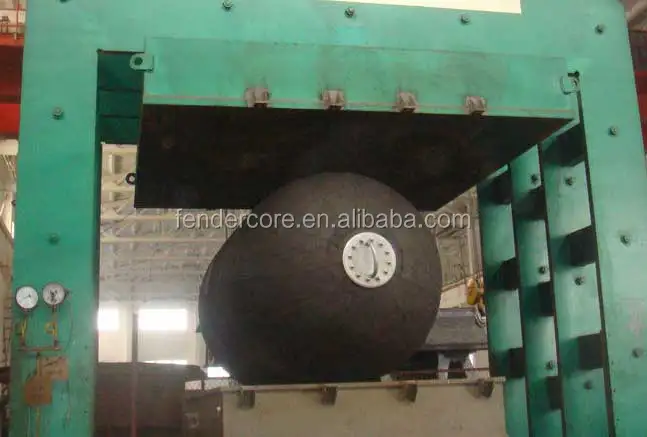

4.Hydrostatic-pressure test
The hydrostatic-pressure test shall be performed for 10 min at the hydrostatic-pressure shown in “test pressure at 0% deflection”. Maximum temporary elongation: 10%



Pressure

Pneumatic Rubber Fender Pressure:



Certifications

Pneumatic Rubber Fende Certifications:
