Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: FLORESCENCE
  • Model Number: FL-JZY852 D1.5*L3.0m
  • Part: rubber fender
  • Model size: D1.5*L3.0m
  • Material: Natural rubber RSS3 and synthetic-tyre-cord layers
  • Fender weight: 715 kg
  • R (KN): 579 KN
  • GEA (KJ): 153 KJ
  • Available diameter: 0.3m to 4.5m
  • Effective length: 0.6m to 12.0m
  • Standard: ISO 17357
  • Certification: CCS BV GL, etc.
  • Application: Ship-to-ship contact, ship to quay, ship to berthing

Packaging & Delivery

Packaging Details Without packages or according to customers' demands
Delivery Time Shipped in 15 days after payment

Passed BV certificate ship boat pneumatic rubber marine fender

----With over 20 years' manufacturing experience

Pneumatic Rubber Fender has been used for almost 50 years, it's also called marine rubber fender or YOKOHAMA fenders. It is the mian anticollision device for ship application in the world. Pneumatic Rubber Fender is used as a protective medium for ship to ship contact, ship to quay,and ship-to-berthing. Pneumatic Rubber Fenders are a type of marine equipments that are used to prevent boats, ships and other naval vessels from colliding against each other or against docks, wharves and piers. In other words ship fenders can be simply termed as a marine bumper. Our pneumatic fender business unit has recently opened the door to the Floating LNG market, one of the most challenging applications in the offshore industry. Several large size fenders will be used in between the largest floating production facility in the world and LNG carrier during the side-by-side operation. Florescence is currently in the process of developing larger size fender and advanced monitoring system to better serve our customer needs.



Reliant on the compressive elasticity of air, Yokohama pneumatic fenders show no deterioration or variation in performance due to fatigue or extremely low temperatures (-50°C and below) thereby negating the need for owners to make regular replacements.

Installation is simple and inexpensive, as the fender is supported by its own weight in the water. As such, it can be moored easily by means of a guy rope or chain, and can be removed with ease for transfer to another mooring point.

pneumatic rubber fender exporting to Singapore marine fender

1.The advantages of pneumatic rubber fender

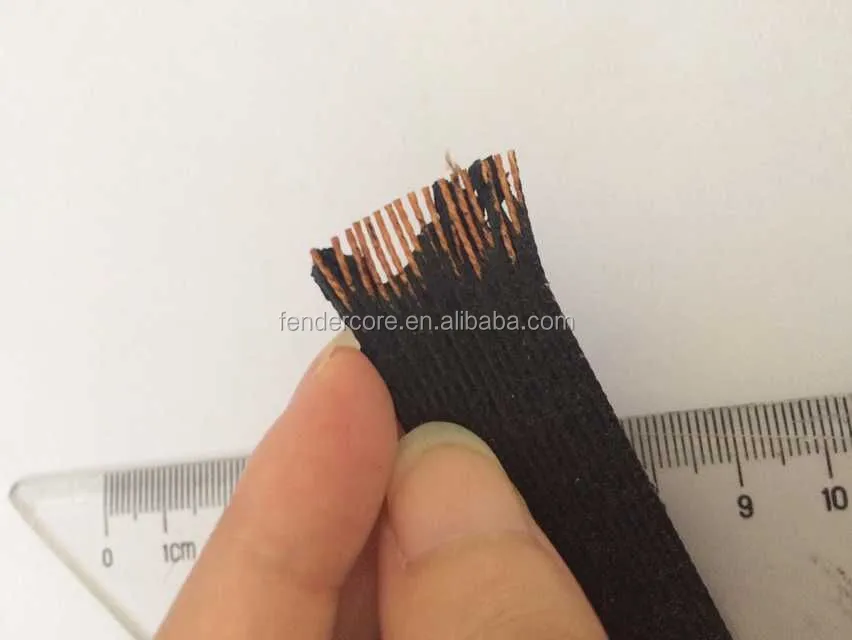

1.1  Choose reinforce synthetic-tire-cord layers

1.2  No mold vulcanization and attach surrounding molding process

1.3  High energy absorption and low reaction force

1.4  Good adaptability to tilt in contact

1.5  Floating on the surface of the water, ship swaying can apply



2.Structure characteristics of the pneumatic rubber fender

Pneumatic Rubber  Fenders are made of an outer rubber, reinforcement synthetic-tyre-cord layer, and inner rubber, vulcanized firmly.

A]. the outer rubbers are used to protect the cord layers and inner rubber from abrasion and other external forces. This rubber compound have sufficient tensile and tear resistance strength to withstand anticipated weather conditions and severe usage.

B]. the reinforcement synthetic-tyre-cord layer strong enough to maintain the internal air pressure of the fender.

C]. the inner rubber layer seals the pressurized air inside the fender.

D]. fenders of diameter 2500mm and larger equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally.

Fender assembly for the end of metal, by inside and outside the two flanges with bolts, nut clamping, center is a valve, its structure is similar to automobile tire valve.

Pneumatic Rubber fender Materials

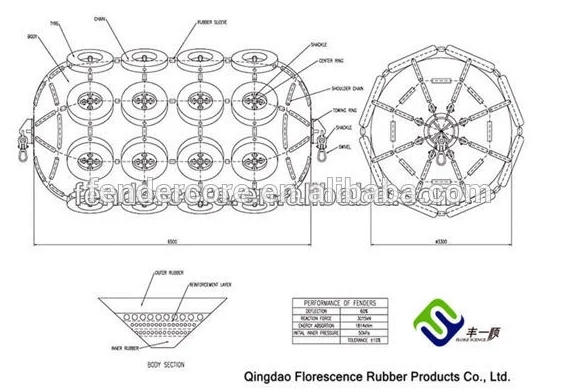

A fender is to be constructed of an outer rubber layer, one or more synthetic-tyre-cord layers, and an inner rubber layer. The arrangement of synthetic-tyre-cord reinforcement layers is shown in the picture below, all materials shall be vulcanized firmly.




3. The purpose of the pneumatic rubber fender

3.1 Ship to ship berthing

Accompanied by a large ship, the risk of two ship berthing at sea is also increased, especially when the weather changes with wind and waves. Adopting pneumatic fender as the buffer can not only makes heavy berthing easy, but also improves the efficiency of the transportation operations. Pneumatic fender is mainly used for Ice in the Antarctic ocean fishing ships and large oil tanker berthing.

3.2 Used for terminal dock protection

Because of the large size of the ship, the berthing impact energy has multiplied.Inflatable rubber fender are widely used because of its high energy absorption and low reaction force features.



4. Maintenance and safety knowledge

4.1 Internal pressure adjustment

Fender pressure should be kept in the standard air pressure in the± 5% range, and once every three months to check air pressure, deflated or fill gas up to standard in a timely manner.

4.2 safety knowledge

a. Avoid touching the sharp things

b. when Long time not use, should wash to dry, filled with right amount of compressed air, placed in a cool dry ventilated place.

c. Storage place away from heat, acid and alkali, oil and grease

 5. Pneumatic rubber fender use matters needing attention

a. Pneumatic pressure control in±5% of the rated pressure

b. Test pressure normally, add pressure in a timely manner

c. Avoid contact with sharp objects

d. when Long time not need, should wash to dry, filled with right amount of compressed air, placed in a cool dry ventilated place.

e. Storage place away from heat, acid and alkali, oil and grease

f. when store, shall not be folded and piled up



6.  Fender technical data sheet



Size

Initial Internal

Pressure  0.05MPa

Weight

±10%

Initial Internal

Pressure  0.08MPa

Weight

±10%

D*L(mm)

R(KN)

GEA(KJ)

Kg

R(KN)

GEA(KJ)

Kg

500*1000

64

6

25

83

8

25

600*1000

74

8

32

96

11

32

700*1500

137

17

50

178

24

50

1000*1500

182

32

80

235

44

80

1000*2000

257

45

100

335

63

125

1200*2000

297

63

120

386

86

165

1350*2500

427

102

165

554

140

226

1500*3000

597

153

315

751

211

370

1700*3000

639

191

405

830

263

436

2000*3500

875

308

590

1138

424

632

2500*4000

1381

663

1050

1815

925

1110

2500*5500

2019

943

1333

2653

1317

1410

3000*5000

2104

1210

1880

2709

1571

2155

3000*6000

2583

1485

2160

3292

1888

2470

3300*4500

1884

1175

2020

2476

1640

2300

3300*6500

3015

1814

2700

3961

2532

3080
